Product Features
Manufactured by: Bullet Proof Diesel
- Wiring Harness for Tomar LED lights.
- Wiring Diagram Here
- Light programming instructions here
Mitchell1 Manual Installation Manual
Need help with this product? Call 1-888-967-6653 or 480-247-2331
Description

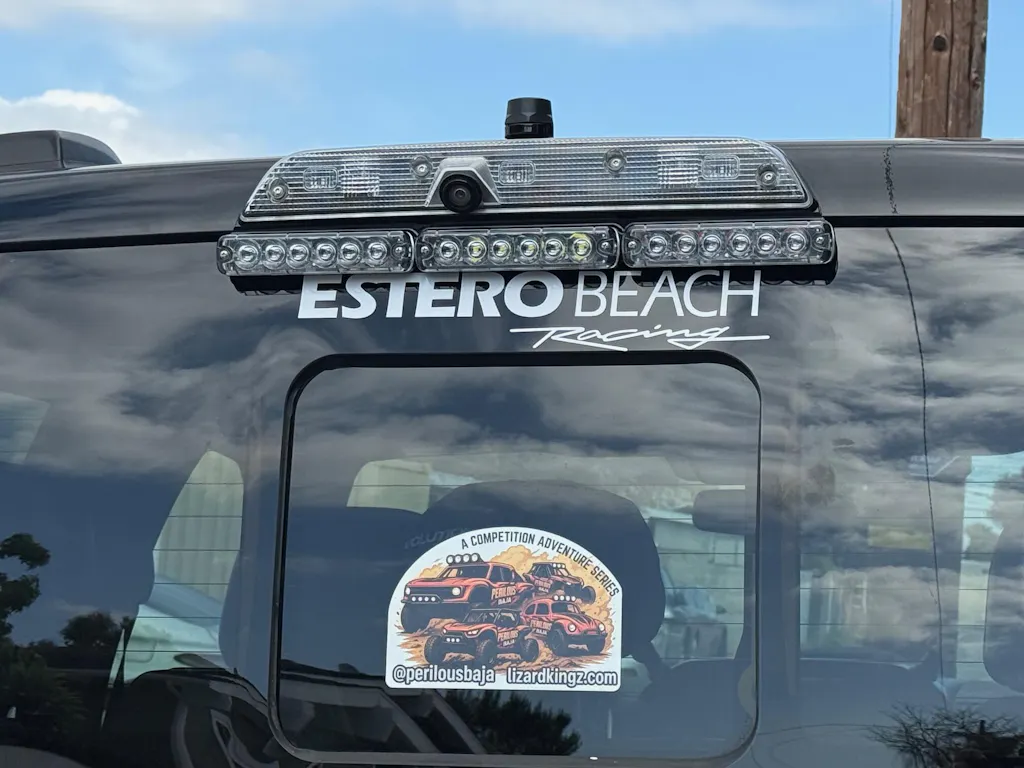

This wiring harness allows you to seamlessly connect your Tomar LED lights to your truck. This cable is approximately 20 feet long and allows you to power your Tomar LED lights.
The connector marked with 'Single" is wired to be independent from the other 3 connectors. This is so that you can control the light you plug into this connector separately from the other 2 lights. If you want all 3 of the lights controlled by the same switch, then use connectors marked "outboard, outboard and center".
There are 6 wires pre-stripped and ready to wire to switches or to 'upfitter' switches if your vehicle is equipped with them. The wire colors and what they control are below:
Red - Battery power to connectors 'outboard, outboard, center' for Mode 1 light operation.
Black - Ground to all four connectors.
Black With White Trace - Battery power to connectors 'outboard, outboard, center' for Mode 2 light operation. Note: for Mode 2 light operation power must be applied to both the Red and Black With While Trace wires at the same time.
Red With White Trace - Battery power to connector marked 'single' for Mode 1 light operation.
Yellow With White Trace - Battery power to connector marked 'single' for Mode 2 light operation. Note: for Mode 2 light operation power must be applied to both the Red With White Trace and Yellow With White Trace wires at the same time.
Yellow - This wire is only used for light programming on the connector marked 'Single'. Lights are preprogrammed to factory defaults - Mode 1 is 'steady burn', or ON and Mode 2 is 'flashing'. If you'd like to program the light differently, here is a PDF to the instructions: Tomar RECT light programming
